5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine

상품

5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine

MOQ:	1세트
standard packaging:	나무 팔레트
Delivery period:	10-15일
결제 방법:	신용장, 티/티
Supply Capacity:	100 세트/월

상세 정보

제품 설명

상세 정보

원래 장소

중국

브랜드 이름

OTA

인증

CE, ISO

강조하다:

5Ton tank rotation machine

ISO container turnover frame

Revolving frame machine for tanks

제품 설명

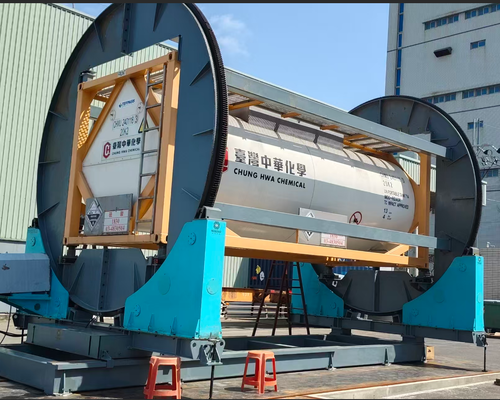

5Ton Tank ISO Container Turnover Rotation Machine

The rotation device is designed for rotating ISO tanks and other standard containers for cleaning, repair, testing, fabrication, and maintenance operations.

Operation Process

The tank/container is loaded onto the seats, with one circle moving on rails to position the container into the circle corners. Once all corners are secured against the machine frame and automatically fixed, the circles rotate via motor drive with self-lock functionality. When the container reaches the desired position, rotation stops, enabling convenient repair or cleaning operations.

ISO Tank Container Rotation Machine Specifications

Max Loading: 5Ton

Job Size: Standard container sizes 20', 40'

Ring Rotate Speed: Controlled by "Schneider" inverter

Rotating Method: Driven by chain & sprocket wheel

Rotate Motor Power: 2*0.75kW

Travel Motor Power: 2*0.55kW

Idler Travel Stroke: 5500-13000mm

Idler Travel Speed: 3000mm/min

Supply Range (Per Set/Pair)

-01 power unit with motors & gearbox, with rotating ring, fix type
-01 Idler unit with rotating ring, travel type
-01 Pendant box with 15mtrs cables (as spare)
-01 control cabinet with inverter: Schneider
-03 pushbuttons
-01 speed control switch
-01 digital speed displayer
Relative documents including mechanical drawings, electrical diagram, operation manual, etc.

Key Functions and Benefits

The main function of ISO tank container turning equipment is to facilitate turning operations for tanks and containers to meet specific operational requirements.

Improve Operating Efficiency: Quickly and effectively turns tanks or carriages to required operating angles or heights, significantly improving operational efficiency.
Easy Cleaning and Repair: Enables thorough cleaning of accumulated dirt and impurities from container bottoms and sides. Facilitates maintenance by positioning containers at optimal repair angles.
Adapt to Different Operating Scenarios: Available in fixed and mobile configurations to suit various operational requirements. Fixed equipment handles large containers or heavy goods, while mobile equipment offers flexibility for different locations.
Ensure Operational Safety: Advanced control systems and safety protection devices guarantee stability and security during turning operations, protecting both operators and containers from damage.
